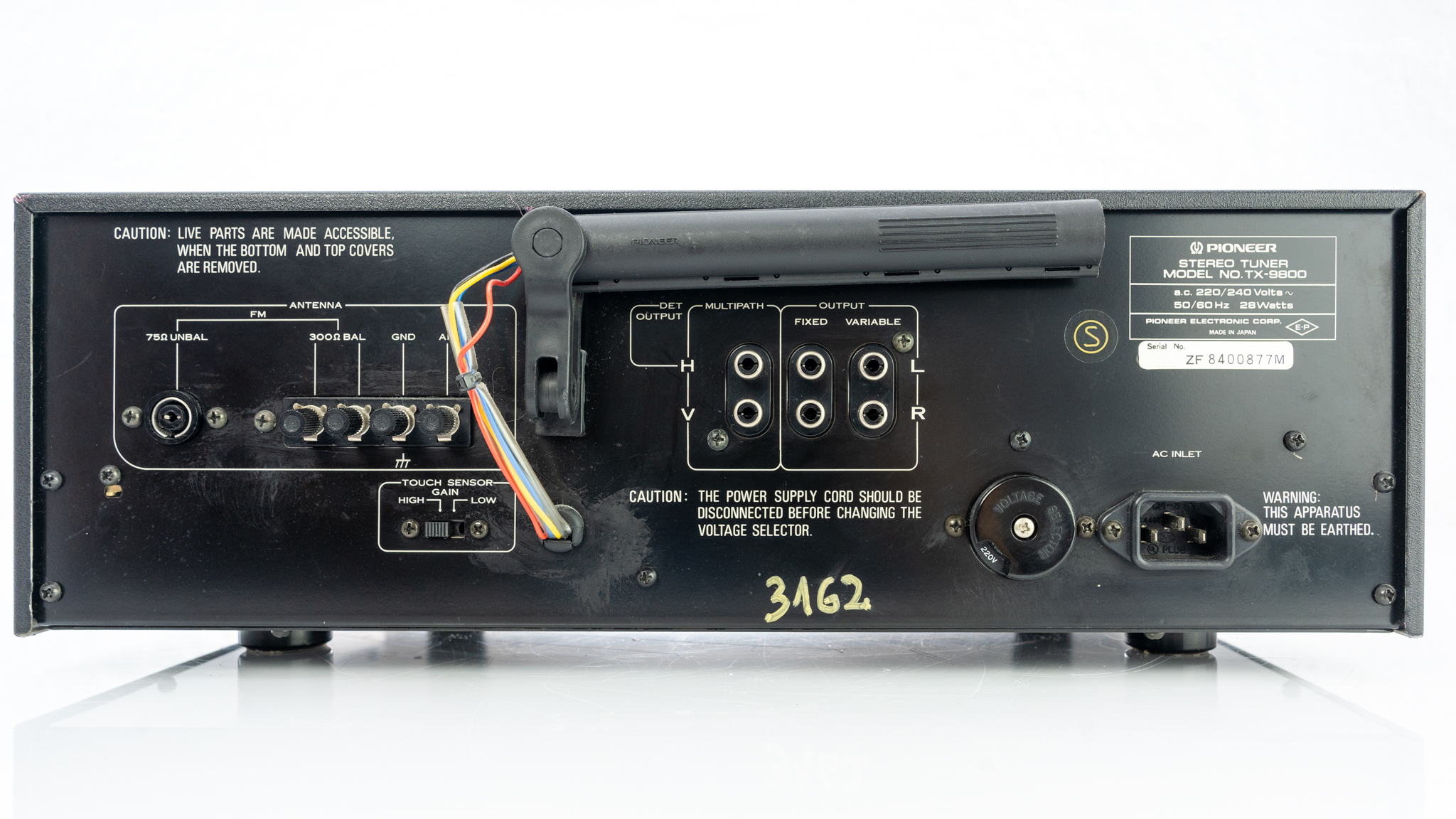

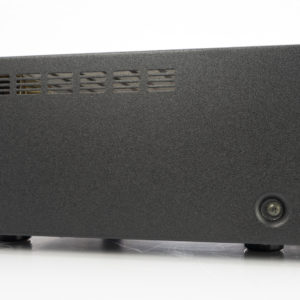

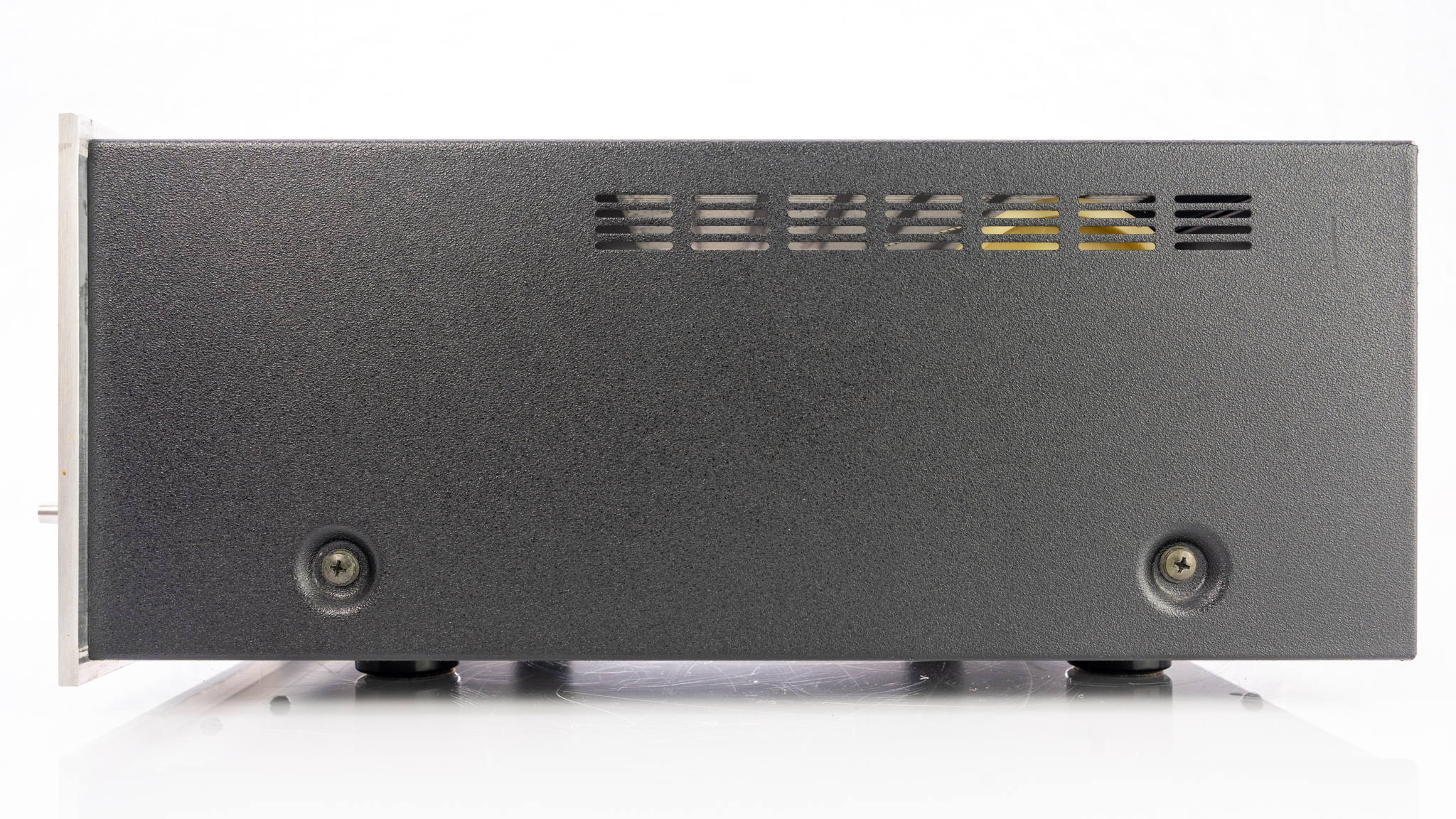

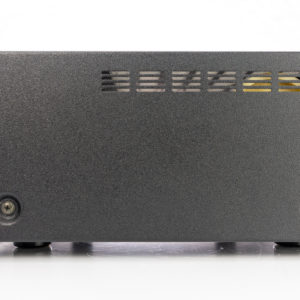

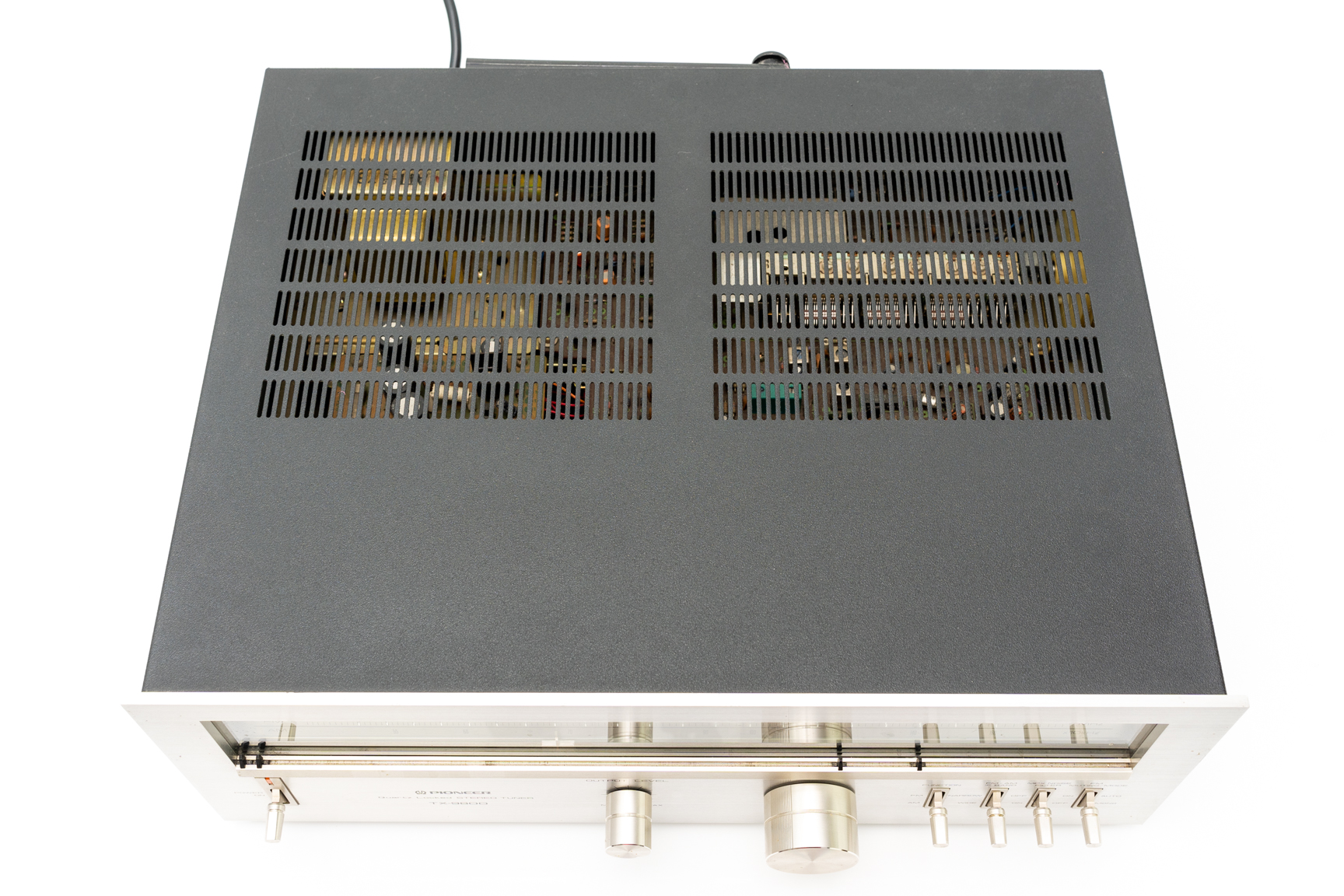

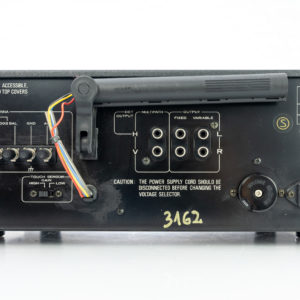

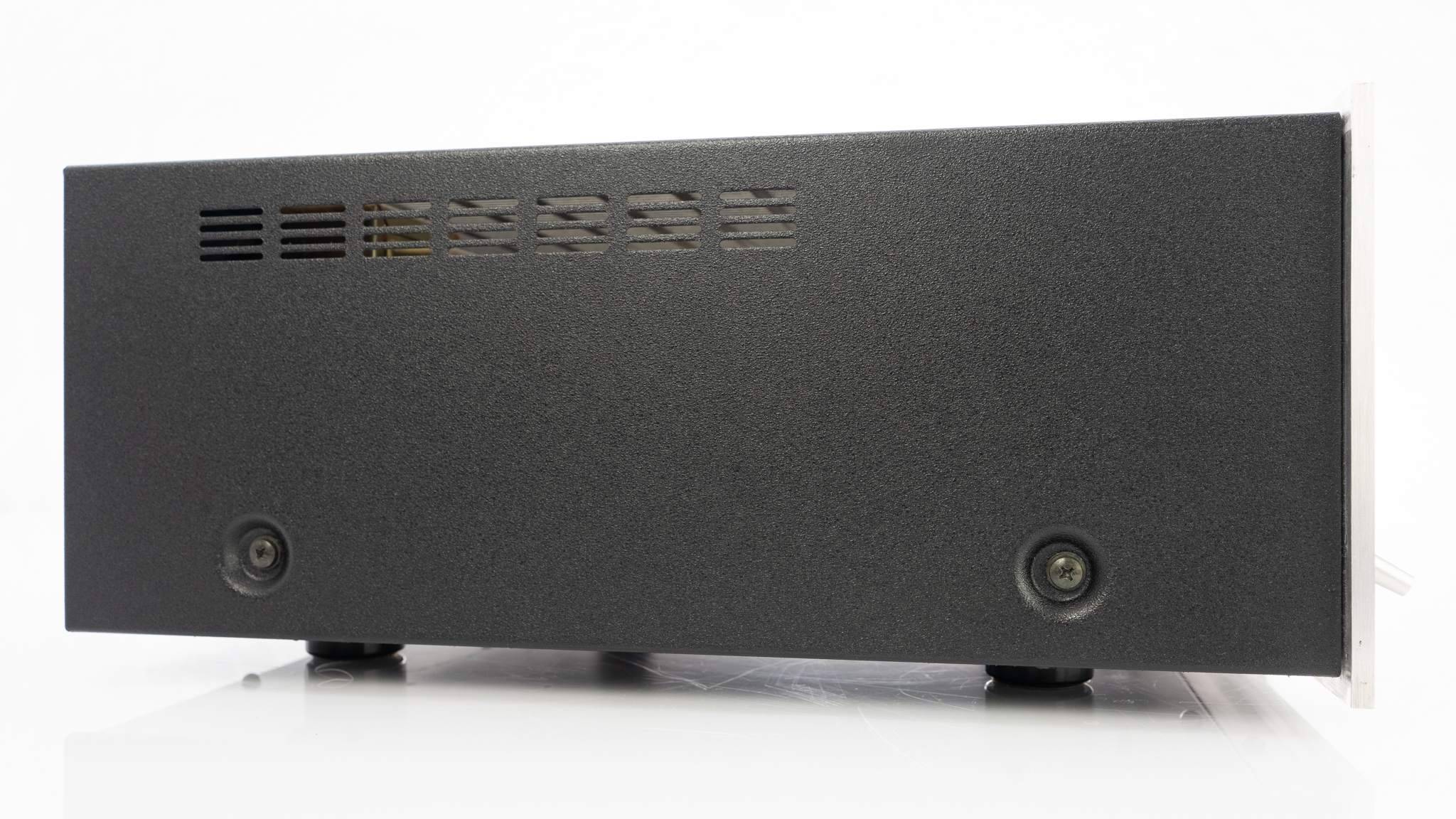

Pioneer TX-9800

Specyfikacja tunera radiowego Pioneer TX-9800:

Type: Mono/Stereo Tuner

Tuning Bands: FM, MW

Tuning Scale: Analogue

Sensitivity: 1.5uV (FM), 300uV (MW)

Signal to Noise Ratio: 80dB (FM), 55dB (MW)

Distortion: 0.2% (FM)

Selectivity: 85dB (FM), 50dB (MW)

Frequency response: 20Hz to 15kHz (FM)

Output: 650mV (FM), 200mV (MW)

Semiconductors: 11 x IC, 11 x FET, 30 x transistors, 48 x diodes

Wymiary: 453 x 155 x 390mm

Waga: około 9kg
